Browse Beaded Hose Barb to Male Pipe

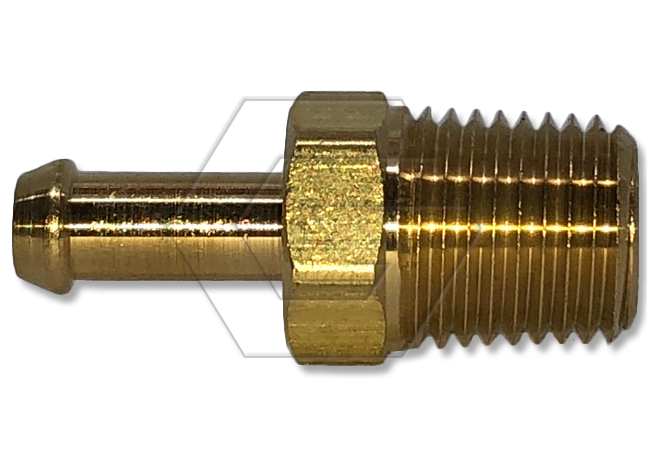

Beaded Hose Barb to Male Pipe is suitable for a broad range of applications, including automotive, industrial, and commercial. This fitting is made from high-quality 360 Brass and is manufactured in the United States to ISO 9001 quality specifications. Please see the below table for part specifications. All fittings have 4 Barbs except as noted.
Select a part from the "Part Number” column below to view details or place an order.
| Part Number | Hose I.D. | Thread NPTF | Barb Length | Overall Length | Thru Hole | Hex Size | Std Pkg | WT/100 pcs. | Online Ordering |
|---|---|---|---|---|---|---|---|---|---|
| BBM-03-02 | 3/16 | 1/8-27 | .625 | 1.18 | .125 | 1/2 | 500 | 2.0 | |
| BBM-04-02 | 1/4 | 1/8-27 | .625 | 1.18 | .177 | 1/2 | 500 | 2.4 | |
| BBM-04-04 | 1/4 | 1/4-18 | .625 | 1.41 | .177 | 9/16 | 500 | 4.2 | |
| BBM-05-02 | 5/16 | 1/8-27 | .625 | 1.18 | .216 | 1/2 | 500 | 2.6 | |
| BBM-05-04 | 5/16 | 1/4-18 | .625 | 1.41 | .228 | 9/16 | 500 | 4.4 | |
| BBM-06-02 | 3/8 | 1/8-27 | .875 | 1.43 | .228 | 1/2 | 500 | 4.0 | |
| BBM-06-04 | 3/8 | 1/4-18 | .875 | 1.67 | .281 | 9/16 | 500 | 4.6 | |
| BBM-06-06 | 3/8 | 3/8-18 | .875 | 1.67 | .281 | 11/16 | 400 | 6.4 | |
| BBM-08-06 | 1/2 | 3/8-18 | .875 | 1.67 | .406 | 11/16 | 350 | 6.4 | |
| BBM-08-08 | 1/2 | 1/2-14 | .875 | 1.88 | .406 | 7/8 | 250 | 11.4 | |
| BBM-10-08 | 5/8 | 1/2-14 | .875 | 1.88 | .500 | 7/8 | 200 | 12.1 | |
| BBM-12-08 | 3/4 | 1/2-14 | .875 | 1.88 | .562 | 7/8 | 200 | 13.7 | |
| BBM-12-12 | 3/4 | 3/4-14 | .875 | 1.88 | .656 | 1 1/16 | 150 | 15.4 |
